Before you even think about picking up a tool, the first job is to figure out exactly what’s gone wrong with your lock. Getting this right from the start is the difference between a quick fix and a world of frustration.

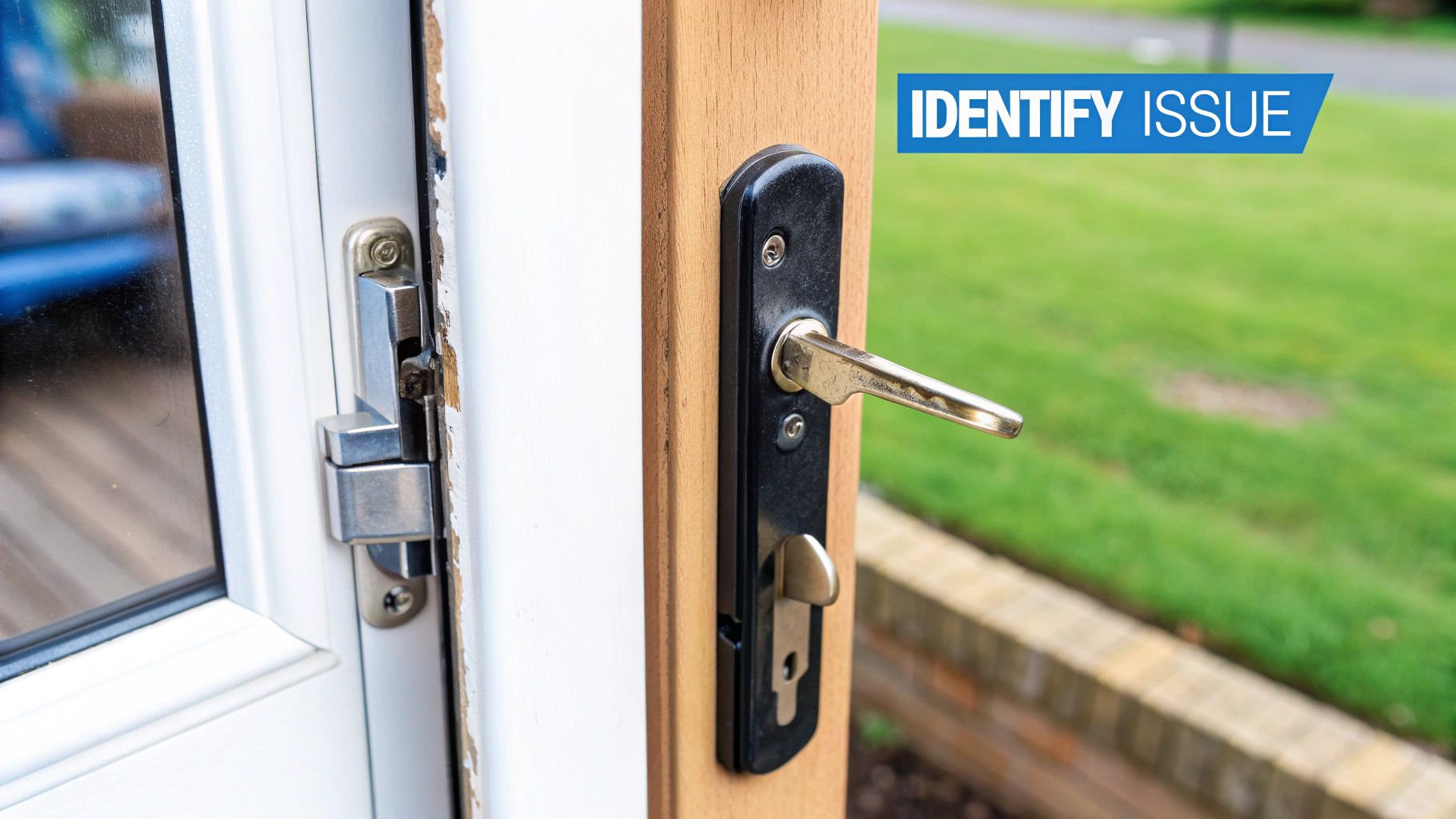

Diagnosing Your UPVC Door Lock Problem

So, what’s the issue? A few minutes of detective work now can save you hours of time and money later. We see it all the time: people rush in, buy the wrong parts, and sometimes make the problem even worse. Forcing a stiff handle on a misaligned door is a classic way to turn a simple adjustment into a broken gearbox.

A proper diagnosis also helps you decide if this is a job you can tackle yourself or if it’s time to call in a pro. If you want to dive deeper into the repair process, have a look at our full guide on how to repair a UPVC door lock.

To help you get started, here's a quick reference table. Just match the symptom your door is showing to the most likely cause.

Common UPVC Door Lock Symptoms and Their Causes

This table should give you a solid starting point for figuring out what's really going on with your door.

Telltale Signs of Lock Failure

The first clues are usually in how the door feels and sounds. Has the handle suddenly become incredibly stiff? Or is it the opposite – completely floppy and loose? Does the key get stuck halfway, or does it just spin around and around doing nothing?

These aren't just random quirks. They're specific symptoms pointing to different problems inside the lock.

A stiff handle that makes you lift and jiggle it to get the door locked is almost always a sign of door misalignment. Heat and cold can make the door or frame expand and contract, knocking the locking points out of line with the keeps. It's often a straightforward adjustment fix.

Expert Tip: A key that spins endlessly without any resistance is the classic calling card of a failed central gearbox. The internal part that connects the key's turn to the locking strip has sheared off. This means you’re almost certainly looking at a gearbox replacement.

Isolating the Culprit

Your next task is to pin down which part is to blame: the Euro cylinder (the bit you put the key in) or the multipoint locking mechanism (the long metal strip running up the door).

Here’s a quick test you can do right now:

• Open the door and try to lock it. If the key turns smoothly and you see the hooks or bolts extend and retract properly, the mechanism itself is fine. The problem is almost definitely an alignment issue with the door frame.
• If it still won’t lock even with the door wide open, then the fault lies within the lock mechanism. This could be a broken cam on the cylinder or, more likely, a failed internal gearbox.

This simple test immediately helps you narrow down the suspects, so you can focus your efforts where they’re actually needed.

Your Toolkit for UPVC Door Lock Repair

Before you even think about tackling a UPVC door lock, you need to have the right gear on hand and a solid idea of what you’re looking at. Trying to bodge a repair without the correct tools is a fast track to stripping a screw or cracking the door panel, turning a simple job into a very expensive headache.

The good news is you don’t need a mobile workshop for this. Most of the essentials are probably already kicking around in your toolbox. You’ll definitely need a decent set of Phillips head screwdrivers (having a few sizes is always a good idea) and a reliable tape measure. Some handles are fixed with hex bolts, so having a set of Allen keys nearby can save you a trip to the shed.

Getting to Know Your Lock's Components

Knowing what parts you're dealing with is just as crucial as having the right screwdriver. A UPVC door lock isn't just one single piece; it's a whole system of interconnected parts that work together.

• The Euro Cylinder: This is the barrel-shaped part you stick your key into. It’s a completely separate component from the main mechanism, held in place by one long screw.
• The Gearbox: Think of this as the brains of the operation. It's the central case housed inside the door. When you turn the key, the cylinder spins a little cam which operates the gearbox, and that, in turn, moves all the locking points up and down the door.
• The Multipoint Locking (MPL) Strip: This is the long metal strip you see running down the edge of the door. It holds all the locking points—the hooks, rollers, or deadbolts that secure the door into the frame.

A classic mistake I see all the time is people buying a whole new multipoint strip when it's only the central gearbox that's failed. On many models, the gearbox can be swapped out on its own, saving you a fair bit of time and money. Always check if you can get the gearbox as a standalone part first.

Why Getting the Measurements Right is Crucial

When it comes to ordering replacement parts, especially a new Euro cylinder, precision is everything. A cylinder that's too long or too short is a massive security risk, making it an easy target for burglars.

To get it right, you need to measure from the centre of the fixing screw hole to both the internal and external ends of the cylinder. This will give you two numbers, for example, 35mm on one side and 45mm on the other. Getting this measurement spot on ensures the new cylinder sits flush with the handles and doesn't stick out.

This diagram shows you exactly where to find that central fixing screw and how the measurement works.

As you can see, many cylinders are "offset," meaning one side is longer than the other to account for different door and handle thicknesses. Nailing these internal and external measurements is absolutely vital for a secure, properly functioning lock.

Right, if your tests are pointing to a dodgy Euro cylinder, you're in luck. Honestly, this is one of the most straightforward jobs you can do when repairing a lock on a UPVC door. It’s a quick and cheap fix that sorts out a whole host of common problems, from a key that’s suddenly stiff to turn, to one that works from the outside but not the inside.

The whole cylinder is held in place by just one long retaining screw. Open your door and look at the metal strip on the edge, right below the main lock bolt. You'll spot the head of this screw. Grab a Phillips head screwdriver and loosen it until you can turn it with your fingers. Don't take it all the way out just yet, though.

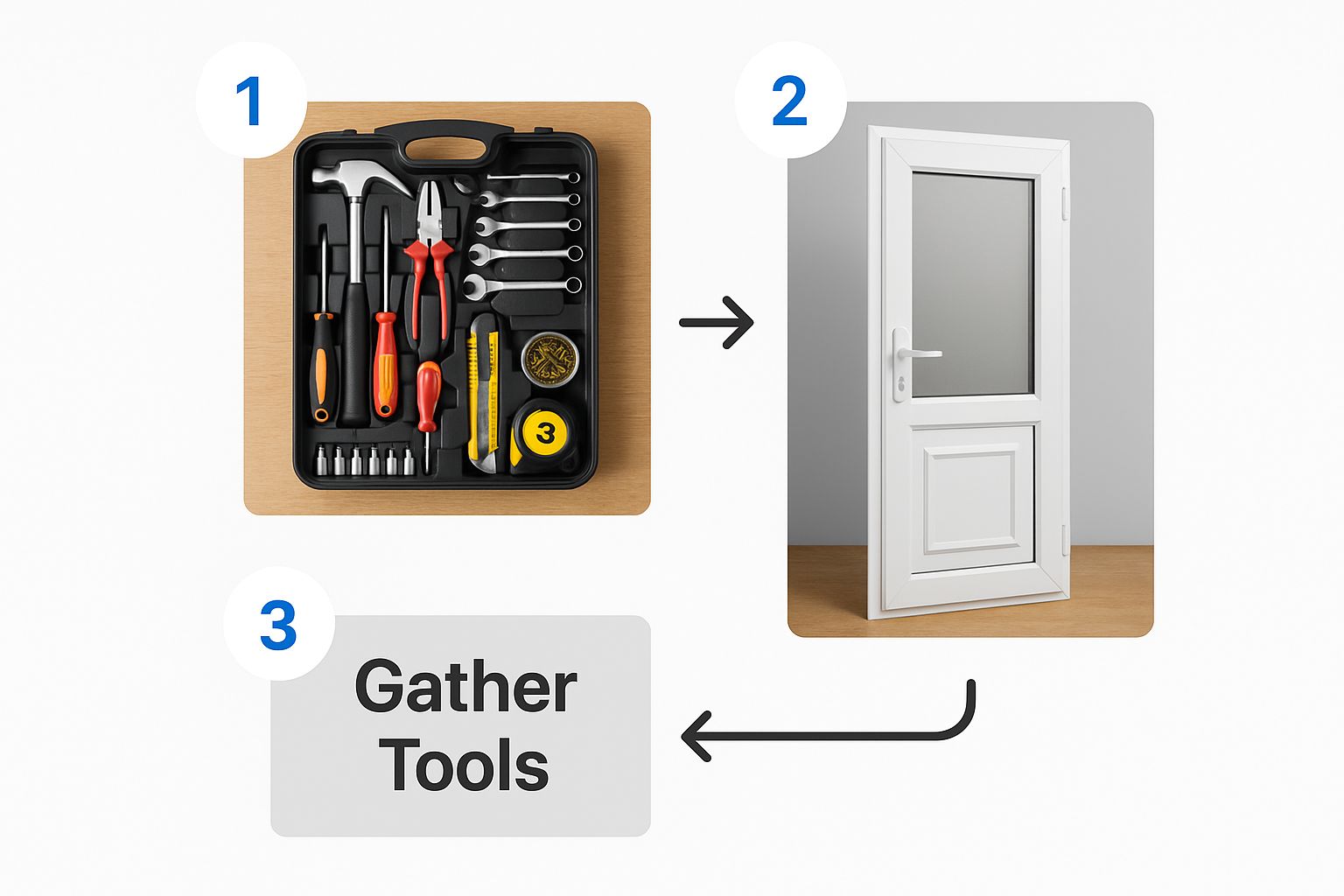

This infographic shows you the simple toolkit you'll need. Getting everything ready first is the secret to a smooth, hassle-free job.

Having these basics to hand means you won’t be scrambling around mid-repair, letting you get the work done efficiently.

Removing the Old Cylinder

Now for a pro tip. With the retaining screw loose, pop the key into the cylinder and give it a slight turn – about 10 to 15 degrees either clockwise or anti-clockwise should do it. As you do this, give the key a little wiggle while applying gentle pressure. This lines up the internal cam with the cylinder body, which is what allows it to slide out.

If it feels stuck, you haven't quite hit that sweet spot. Just keep gently turning and wiggling. Once the cam is aligned, the cylinder will pull out with almost no effort. Now you can fully remove the retaining screw and pop it somewhere safe.

Crucial Tip: Whatever you do, don't try to force the cylinder out. If it’s stuck, the cam isn't aligned. A common mistake I see is people turning the key way too far. A small, gentle turn is all you need to get it moving.

Measuring for a Perfect Fit

With the old cylinder out, it’s time to measure up for its replacement. This is probably the most critical step for keeping your home secure. A cylinder that's too long presents a major vulnerability that burglars can exploit with a method called "lock snapping."

Here’s how to get it right:

• Measure from the centre screw hole to the outside edge of the cylinder (this is your external measurement).
• Next, measure from the centre screw hole to the inside edge (your internal measurement).

You'll end up with two separate numbers, maybe 40mm and 50mm, for example. These are the exact dimensions you need to look for when buying a new one. Do not just measure the total length and halve it. Most UPVC door locks use offset cylinders where one side is deliberately longer than the other.

Installing the New Cylinder

Fitting the new cylinder is pretty much the removal process but in reverse. Slide the new cylinder into the hole, making sure you have the key inserted and turned slightly to keep the cam retracted. You'll feel it drop neatly into place once it's seated correctly.

From the edge of the door, pop the retaining screw back in and tighten it by hand. Before you wrench it down, give the lock a quick test. Turn the key and make sure the whole mechanism feels smooth. If it grinds or feels stiff, the cylinder might not be seated properly, so give it a jiggle.

Once you’re happy with how it feels, tighten the retaining screw until it's snug. Don’t be tempted to overtighten it, as this can bind the cylinder and cause problems. You're aiming for a firm fit, not a forced one. Give the lock a final test with the door open and then closed, and that's the job done.

Fixing the Multipoint Lock and Gearbox

So, you've tested your lock cylinder and it's working perfectly, but the door still refuses to lock. This usually means the problem lies deeper, inside the central gearbox of the multipoint locking (MPL) system. It’s the engine of your door lock, and when it fails, everything stops working.

This is a more involved repair, but it’s definitely one a confident DIYer can tackle.

The signs of a failed gearbox are pretty unmistakable. You might have a door handle that’s gone completely floppy and lifeless, or a key that just spins and spins without ever throwing the bolts. These symptoms almost always point to a mechanical failure where a critical part has sheared off inside.

Getting Access to the Mechanism

To get started, you'll need to remove the entire multipoint locking strip from the door's edge.

First, take off the door handles. They're usually held in place by two or three screws that pass straight through the door to the other side. Once they're off, remove the Euro cylinder just as we covered in the previous section.

Now you’ll see a line of screws running up and down the long metal faceplate on the edge of the door. Carefully undo every single one and pop them somewhere safe. The entire MPL strip, gearbox included, should now be loose enough to be gently prised out of its channel. Go easy here, as it can be a snug fit.

Identifying and Sourcing the Replacement Part

With the mechanism out, lay it on a flat surface. Your first job is to play detective and identify the make and model. Most manufacturers stamp their name, and sometimes a model number, right onto the metal faceplate. Keep an eye out for brands like GU, Fuhr, Mila, or Yale.

You'll also need two crucial measurements to order the right replacement part:

• PZ Centre: The distance from the centre of the keyhole (where the cylinder goes) to the centre of the handle spindle.
• Backset: The distance from the front edge of the faceplate to the centre of the keyhole.

Getting these measurements spot-on is vital for a successful repair on your UPVC door lock. The good news is that many MPL systems are modular. This means you can often buy just the central gearbox and swap it onto your existing metal strips, which is a lot cheaper than replacing the whole unit.

A common mistake is ordering a part based on looks alone. Two gearboxes might look identical but have completely different internal mechanics or measurements. Always double-check the make, model, PZ centre, and backset before you part with your cash.

The UK's uPVC door lock market is well-established, especially in cities. Specialist suppliers and MLA-approved locksmiths often stock a huge range of gearboxes and locking strips, which means repairs can be done quickly. This expertise is key, as your average locksmith may not carry the specific components for every type of door.

Installing the New Gearbox and Testing

Fitting the new gearbox or the full strip is simply the reverse of removal. If you're only swapping the gearbox, you’ll likely need to drill out the rivets holding the old one in place and then secure the new one with the screws provided.

Once the new mechanism is reassembled and slotted back into the door, loosely fasten a few of the main screws. Now for the most important part: test everything while the door is still open. Put the handle and cylinder back in, then operate the lock fully. Lift the handle, turn the key, and watch to make sure every single hook and bolt extends and retracts smoothly.

If something isn't right, you want to find out now—not after you've locked yourself out. If you find the door is now completely stuck, our guide on a jammed door lock can provide some immediate advice.

After you’ve confirmed it all works as it should, tighten up all the screws, and your door will be secure once again.

Knowing When to Call a Locksmith

There's a real satisfaction in fixing things yourself, I get it. But when it comes to the lock on your front door, there's a fine line between a successful DIY project and a security nightmare. Knowing when to put the tools down and call for backup is a sign of a smart homeowner, not a failed one.

If you're staring at a UPVC door that's completely jammed shut, leaving you locked in or out, that's your cue. Trying to force a multipoint lock is a recipe for disaster. You can easily wreck the internal mechanism or even damage the door frame itself, turning a straightforward fix into a costly replacement.

When You Absolutely Need a Professional

Some jobs just aren't worth the risk. A professional locksmith doesn't just show up with a van full of tools; they bring years of hands-on experience dealing with every fiddly, stubborn, and obscure lock you can imagine.

Here are a few clear signs it’s time to get an expert on the phone:

• You suspect a break-in. If your lock has been tampered with or looks forced, don't touch a thing. A locksmith won't just repair the damage; they'll spot vulnerabilities and give you solid advice on how to properly secure your home.
• You can't identify the part. Pulled the lock apart and can't find a manufacturer's name or model number? Good luck finding the right replacement. Locksmiths have access to trade-only suppliers and a deep knowledge of older, discontinued parts.
• The problem is deeper than the lock. If you've already replaced the cylinder and gearbox but the door still won't work properly, the issue is likely more complex. It could be a warped door or a serious alignment issue that needs specialist tools and know-how to fix.

A professional locksmith doesn’t just swap parts; they diagnose the root cause of the problem. This is the difference between a temporary fix and a guaranteed, lasting repair that gives you genuine peace of mind.

DIY Repair vs Hiring a Professional Locksmith

Deciding whether to tackle a UPVC door lock repair yourself or call in an expert can be tricky. It often comes down to balancing cost, complexity, and how much you value your time and security. This table breaks down the key factors to help you make the right call for your situation.

Ultimately, if you're ever in doubt, calling a locksmith is the safest bet. It might cost a bit more upfront, but it saves you the headache of buying the wrong parts, spending hours on a frustrating job, or compromising your home's security.

Understanding What a Locksmith Costs

The cost of hiring a locksmith often feels like a big unknown, but it’s usually more reasonable than people think. When you weigh it against the value of your own time—not to mention the cost of ordering incorrect parts—it starts to look a lot more appealing.

In the UK, the price for a UPVC door lock repair can vary. Replacing a standard Euro cylinder, for example, typically costs between £75 and £125. If you're upgrading to a higher-security anti-snap cylinder, you're looking at around £100 to £150. Most locksmiths have an hourly rate between £50 and £95, though this can be higher for emergency or out-of-hours call-outs.

You can find a more detailed breakdown in our guide to the average locksmith cost. For extra peace of mind, it's also worth seeing what trusted sources like Checkatrade say about UPVC door lock replacement costs. Having these figures in your back pocket helps you make an informed decision without any nasty surprises.

Common Questions About UPVC Lock Repairs

Even with a good idea of what’s wrong, it’s completely normal to have a few questions before you get the tools out. Getting your head around these common queries will give you the confidence to tackle the job and sidestep some simple but frustrating mistakes.

Think of it this way: a lock that's getting a bit stiff is the first cry for help. Ignoring it is like turning the radio up to drown out a funny noise from your car's engine. It might work for a bit, but it almost always ends in a bigger, more expensive headache down the road.

Why Did My UPVC Door Lock Suddenly Get Stiff?

This is, without a doubt, the question we hear most often. A lock handle or key that suddenly becomes stiff or difficult to turn is almost always a dead giveaway for door misalignment. UPVC frames are susceptible to temperature changes, causing them to expand and contract. This tiny movement can be just enough to knock the locking points on the door out of line with the keeps on the frame.

Here's a quick test you can do right now. Pull the door to, lift the handle up firmly, and hold it there while you turn the key. If the key turns smoothly, you can be 99% sure your door needs its hinges adjusting.

Of course, it could just be a lack of lubrication. But if a quick spray with a silicone-based lubricant doesn't sort it, the internal gearbox is likely the next suspect and is probably on its way out.

Can I Upgrade My Lock for Better Security?

Yes, absolutely. In fact, a repair is the perfect opportunity to make a serious security improvement.

The single best upgrade for any UPVC door is replacing the standard Euro cylinder with a high-security, anti-snap model. These are engineered specifically to defeat a burglar's favourite technique, known as "lock snapping."

When you're choosing a new cylinder, don't just grab any old one. Look for a lock that is either TS007 3-star rated on its own, or a combination of a 1-star rated cylinder and 2-star rated security handles. This is the police-preferred specification, and it provides a proven defence against modern attack methods.

It’s a small extra cost that massively boosts your home's security. Don't just replace like-for-like; use this chance to make your home safer.

My Key Just Spins in the Lock – What's Broken?

A key that just spins and spins without doing anything is a classic symptom with a very specific cause. In almost every single case, this points to a failed central gearbox.

The system is simple: the key turns a cam inside the cylinder, which then operates the gearbox. If the internal parts of that gearbox have broken or sheared off, there's nothing for the cam to connect with.

On rare occasions, the small metal cam on the cylinder itself can break, but a faulty gearbox is the culprit in well over 90% of these situations. The only fix is to replace the broken part, which usually means fitting a new gearbox into your existing multipoint locking strip.
